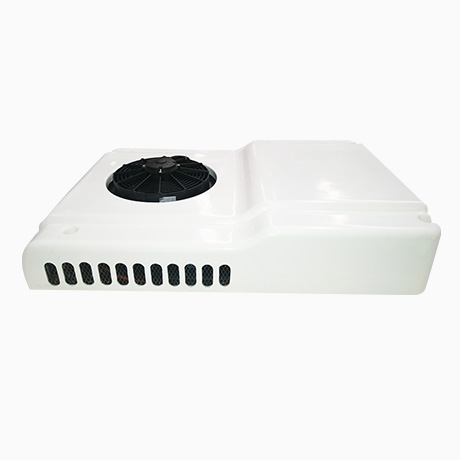

SR-300RF

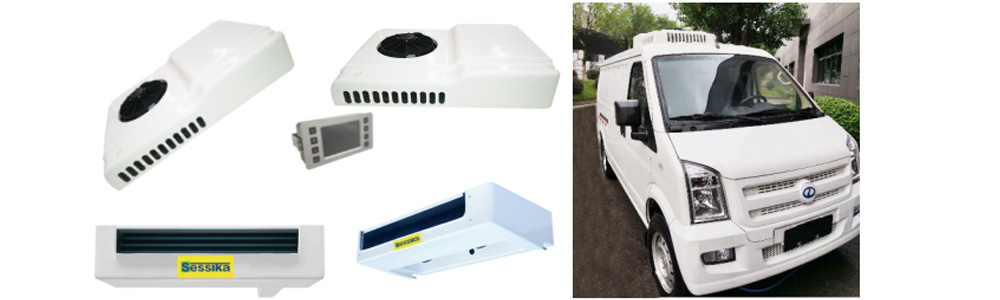

Maximum cooling designed for the transportation for fresh and frozen goods in small size trucks with container volume of 6~10m³ (7212~353ft³).
Features
Fast cooling, high efficiency and saving-energy.
Large screen LCD display, more friendly interface.
The industry's original double seal technology greatly reduces leakage and improves reliability.
ROOF TOP UNIT
Model SR-300E
Temperature Range (In Container) -18 ℃~+15℃
Cooling Capacity 0℃/+32℉ 3250 W / 2795 Kcal
-18℃/-0.4℉ 1750 W / 1505 Kcal
Compressor Model HIGHLY DDH254
Voltage 220V~450V DC
Weight 19.2 kg
Condenser Core Aluminum micro-channel parallel flow core
Fan One fan
Airflow 2000 m3 / h
Dimension 1336*488*271 mm
Weight 67 kgs
Evaporator Core Copper tube & aluminum fin
Blower Two blowers
Airflow 1600m3 / h
Dimension 1042*514*156 mm
Expansion valve Danfoss
Weight 22 kgs
Emergency power supply DC220V-450V
Refrigerant R404a
Defrosting Hot gas defrosting (Auto. / Manual)
Application 6~10m³ (7212~353ft³)
