Position : Home > Products > Electric Unit

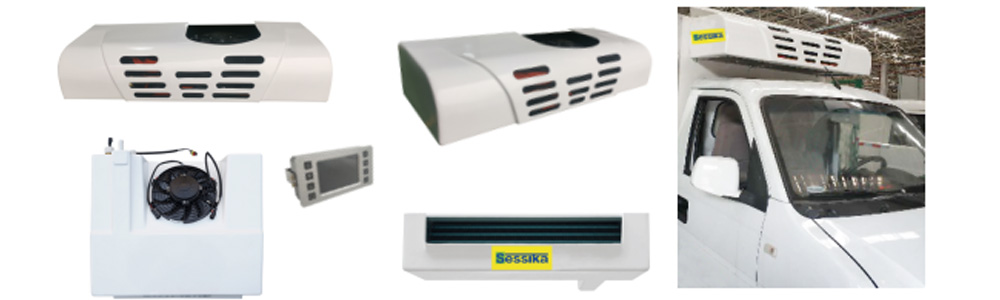

SR-100E

Maximum cooling designed for the transportation for fresh and frozen goods in small size trucks with container volume of 4~8m³ (141~283ft³).
Features
Fast cooling, high efficiency and saving-energy.
The key components of the equipment contain high quality importing parts.
Small size, fast cooling, precise temperature control, and reliable performance.
Specifications
Model SR-100E
Temperature Range (In Container) -18 ℃~+10℃
Cooling Capacity -18℃/-0.4℉ 1100 W / 946 Kcal
Compressor Displacement 27cc/r Electric DC compressor
Condenser Core Aluminum micro-channel parallel flow core
Fan One fan
Dimension 850×480×240 mm
Evaporator Core Copper tube & aluminum fin
Blower One blower
Dimension 610×530×145 mm
Expansion valve Danfoss
Emergency power supply AC-220V
Electric current 65-70A@12V
45-50A@24V
Refrigerant R404a / 1.3 kgs
Defrosting Defrosting (Auto. / Manual)
Application 4-8 m³ (141~283ft³)
