SR-100RF

Maximum cooling designed for the transportation for fresh and frozen goods in small size trucks with container volume of 2~7m³ (71~247ft³).

Features

Fast cooling, high efficiency and saving-energy.

The refrigerating unit is driven by truck engine, drive and perform cooling and defrosting.

According to user needs, optional by the motor-driven compressor operation for cooling and defrosting.

Share With:

Specifications

Model		SR-100E
Temperature Range (In Container)		-15 ℃~+25℃
Cooling Capacity	-5℃/+23℉	1100 W / 945 Kcal
Cooling Capacity	-10℃/+14℉	1000 W / 860 Kcal
Compressor	Displacement	27cc / r
Condenser	Core	Aluminum micro-channel parallel flow core
	Fan	One fan

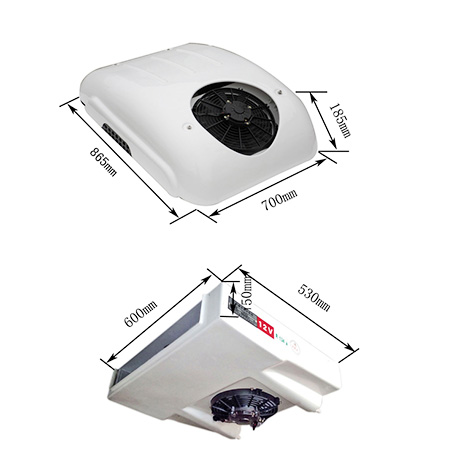

	Dimension	865×660×210 mm
Evaporator	Core	Copper tube & aluminum fin
	Blower	One blower
	Dimension	610×530×160 mm
	Expansion valve	Danfoss
Emergency power supply		AC-220V
Electric current		65-70A@12V
Electric current		45-50A@24V
Refrigerant		R134a / R404a, 0.6-0.8 kgs
Defrosting		Defrosting (Auto. / Manual)
Application		2-7 m³ (71~247ft³)
