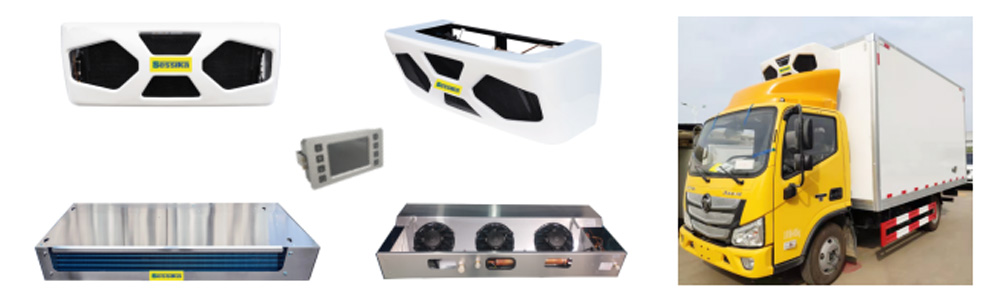

| Model | SR - 500 | |
| Temperature Range (In Container) | -18℃~+15℃ | |
| Cooling Capacity | 0℃/+32℉ | 5100W / 4385 Kcal |
| -18℃/-0.4℉ | 2620 W / 2253 Kcal | |
| Compressor | Model | TM16 |
| Displacement | 163 cc / r | |
| Weight | 7 kgs | |
| Condenser | Core | Aluminum micro-channel parallel flow core |
| Fan | Two fans | |
| Airflow | 4000m3 / h | |
| Dimension | 1283*530*467 mm | |
| Weight | 32.45 kgs | |
| Evaporator | Core | Copper tube & aluminum fin Housing alum. |
| Blower | Three blowers | |
| Airflow | 2400m3 / h | |
| Dimension | 1334*558*210mm | |
| Expansion valve | Danfoss | |
| Weight | 27.8 kgs | |
| Voltage | DC-12V / DC-24V | |
| Electric current | 58A@12V | |
| 32A@24V | ||
| Refrigerant | R404a / 2.5 kgs | |
| Defrosting | Hot gas defrosting (Auto. / Manual) | |
| Application | 20~26m³ (706~918ft³) | |
 |
||
