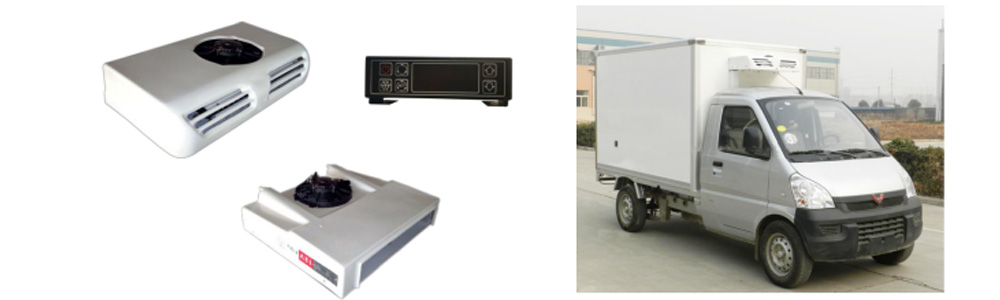

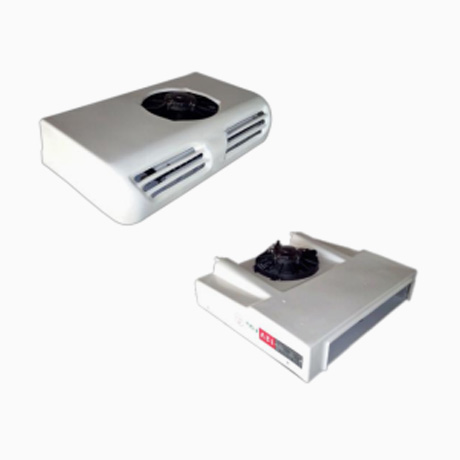

SR-100

Maximum cooling designed for the transportation for fresh and frozen goods in small sized pickup and van container volume of 2~5m³ (71~177ft³).

Features

Big cooling capacity & reliable performance to stand against hot & dusty climatic condition.

Complete control system, stream line design to apply all kinds of small truck refrigerated body.

Perfect data monitoring on Fahrenheit or Celsius display, voltage display, high and low voltage alarm.

Share With:

Specifications

Model		SR -100
Temperature Range (In Container)		-10℃~ +25℃
Cooling Capacity	-10℃/+14℉	1630 W / 1402 Kcal
Compressor	Displacement	96cc / r; 108cc / r
Condenser	Core	Aluminum micro-channel parallel flow
	Fan	One fan
	Dimension	715393165 mm
Evaporator	Core	Copper tube & aluminum fin
	Blower	One blower
	Dimension	610530160 mm
	Expansion valve	Danfoss
Voltage		DC-12V / DC-24V
Electric current		20A@12V
Electric current		10A@24V
Refrigerant		R134a / 0.8 kgs
Defrosting		Hot gas defrosting R404A (Auto. / Manual)
Application		2-5 m³ (71~177ft³)
